Molybdenum wire EDM TC400G
  • Molybdenum wire EDM TC400G
  • Molybdenum wire EDM TC400G
  • Molybdenum wire EDM TC400G

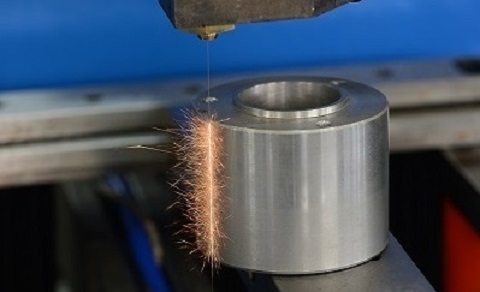

Molybdenum wire EDM TC400G

1. Max cutting speed: 200mm2/min 2.Ra(best):0.8um 3.Taper angle:±3/80mm 4. Wire tension systerm
wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools
Detailed description



I. Main Parameters:

Specification

TC400G

Travel/space

X/Y Axis travel

mm

300*400

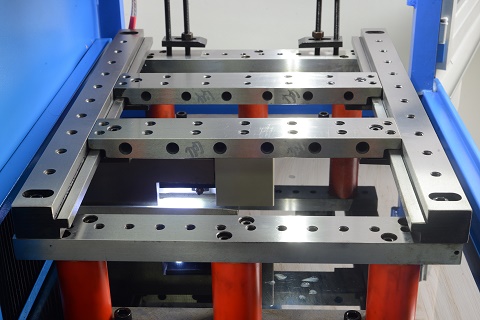

Table size

L*W

mm

550*680

Max work piece thickness

H

mm

250

Taper angle

R

Degree

±6°/80mm

Roughness

Ra(Once cutting)

um

2.5

Ra(Multi- cutting)

um

0.8

Cutting Precision

Cr12

mm

±0.005

Repeated position



mm

±0.003

Screw

*

PCS

Hiwin (C2 class)

Guide way

*

PCS

Hiwin  linear guidway(P class)

Load of Table

*

KG

350

Weight

*

KG

1500

Wire tension

Double direction wire tension (Spring type)

DRO(Digital Read Out)

2 axis

Yes

Motor

Step motors on X/Y axis



II. Features: WITH THE BEST CONTROL SYSTEM
  1. Lowest running cost
  2. Reusable molybdenum wire
  3. Multiplicity cutting function: better accuracy, better surface finishing
  4. DXF, AutoCAD can be read. AutoCAD can be used directly, easier to operate
  5. Surface finishing 1.0-0.8μ
  6. The casting for the main machine bed is equipped with the high rigid HT250, which made by a famous Japanese manufacturer. Integrated structure design, all casting parts are made with the procedure of resin-send and twice heat treatment to improve the max load weight and keep a good precision for long time and avoid the distortion.
  7. Panasonic from Japan
  8. New designed three layer filter coolant system
  9. Industrial computer: more stable, longer using life
III. CONTROL SYSTEM WindowsXP (installed with Autocut )
1. The controller equipped the Autocut Intelligent software, which integrates the program and control and based on Windows XP. This new designed Autocut software is the unique software for WEDM running on the condition of windows XP.
   (1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
   (2) Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time
   (3)Functions of interpolation of straight line and circular arc
   (4)Function of taper processing: As above
   (5)Function of processing different top and bottom abnormities parts
   (6)Auto-handle for short circuit and wire-break
   (7)Functions of memorizing: unexpected power off, it can continue the processing automatically; auto-stop after processing
   (8)Functions of auto edge-touching position and auto center finding
   (9)Function of auto-adding transitional arc (Arbitrary angle)
   (10) Functions of menu technology and auto-programming ward
   (11)Functions of menu technology and auto-programming
   (12)AUTOCAD can be used to program directly in the software.
 2. Using the PCI slot controller card, LCD Monitor and the High-tech Industrial computer. That greatly enhances the stability of control and greatly reduces the computer the failure rate.
 3. Embedded Control system can be connected with many design software smoothly.
 4. Variety of pulse power can be chosen, which is suited for a number of processing conditions to improve the cutting ability of the high precision parts.
 5. Parameters Automatical created according to the workpiece
6. CNC system configuration and technical performances
 (1) CNC Hardware configuration:
         (A) Industrial Computer:P4 or above
         (B)EMS memory: 4G SSG
         (C)Fixed Disk: 160G
         (D)USB and Internet
         (E) 15liquid crystal display (LCD)
         (F)  Keyboard and mouse
(2)CNC software and operation platform:
         (A) CNC Auto-program and control function
         (B) operation platform: Windows XP
(3)CNC technical function:
         (A) 4 axis processing
         (B)Function of processing different top and bottom abnormities parts
(4)Running environment
         (A) Temperature: 5-40 degree
         (B) Relative humidity40%80%.
