XL Models Reusable WEDM

We can offer OEM service on the Reusable wire cutting EDM machines with a competitive cost
wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools
Detailed description

I). Main Specification:



Model

TW160*160

TW160*200

TW160*250

Travel/space

X/Y axis travel

mm

1600*1600

1600*2000

1600*2500

U/V axis travel

mm

A type: 20*20

Table size

L*W

mm

1400*2000

1420*2420

1420*3020

Max workpiece thickness

H

mm

500

500

500

Taper angle

R

degree

A type:±3°

Roughness

Ra(Once cutting)

um

≤2.5

Ra(Multi- cutting)

um

≤1.0

Precision

*

mm

≤0.015

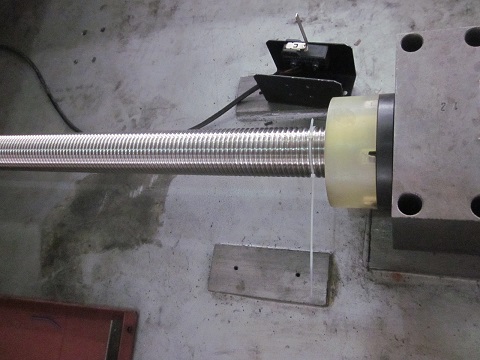

Screw

*

pcs

High precision ball screw

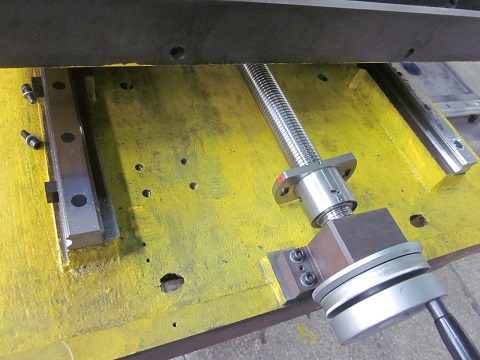

Guide way

*

pcs

Steel linear guide way

Motor

X/Y axis Servo  motors control

Machine dimension

L*W*H

mm

3300*4200*1900

4200*4200*1900

4800*4200*1900


II). Features: WITH THE BEST CONTROL SYSTEM

  1. Lowest running cost

  2. Reusable molybdenum wire

  3. Multiplicity cutting function: better accuracy, better surface finishing

  4. DXF, AutoCAD can be read. AutoCAD can be used directly, easier to operate

  5. Surface finishing 1.5μ~2.5μ

  6. The casting for the main machine bed is equipped with the high rigid HT250, which made by a famous Japanese manufacturer. Integrated structure design, all casting parts are made with the procedure of resin-send and twice heat treatment to improve the max load weight and keep a good precision for long time and avoid the distortion.

  7. New designed three layer filter coolant system

  8. Industrial computer: more stable, longer using life

III). CONTROL SYSTEM Windows XP

The controller equipped the auto cut Intelligent software, which integrates the program and control and based on Windows XP. This new designed auto cut software is the unique software for WEDM running on the condition of windows XP.

   (1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)

   (2) Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time

   (3)Functions of interpolation of straight line and circular arc

   (4)Function of taper processing: As above

   (5)Function of processing different top and bottom abnormities parts

   (6)Auto-handle for short circuit and wire-break

   (7)Functions of memorizing: unexpected power off, it can continue the processing automatically; auto-stop after processing

   (8)Functions of auto edge-touching position and auto center finding

   (9)Function of auto-adding transitional arc (Arbitrary angle)

   (10) Functions of menu technology and auto-programming ward

   (11)Functions of menu technology and auto-programming

   (12)AUTOCAD can be used to program directly in the software.

 2. Using the PCI slot controller card, LCD Monitor and the High-tech Industrial computer. That greatly enhances the stability of control and greatly reduces the computer the failure rate.

 3. Embedded Control system can be connected with many design software smoothly.

 4. Variety of pulse power can be chosen, which is suited for a number of processing conditions to improve the cutting ability of the high precision parts.

 5. With a large database storage capacity, user can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience

IV). CNC system configuration and technical performances

 (1) CNC Hardware configuration:
         (A) Industrial Computer:P4 or above
         (B)EMS memory:1G
         (C)Fixed Disk:160G
         (D)USB and Internet
         (E) 15″liquid crystal display (LCD)
         (F) RS232 and Keyboard and mouse

(2)CNC software and operation platform:
         (A) CNC Auto-program and control function
         (B) operation platform: Windows XP

(3)CNC technical function:
         (A) 4 axis processing
         (B)Function of processing different top and bottom abnormities parts

(4)Running environment
         (A) Temperature: 5-40 degree
         (B) Relative humidity
40%80%.
