Super Drilling EDM machine
I. Specification
| Model |
TD703A |
|
|
1 |
Worktable Dimension |
550×360㎜ |
|
2 |
Travels X×Y×Z |
350×250×（380+300）㎜ |
|
3 |
Max Load on Work Table |
350kg |
|
4 |
Max Pressure of Working Water |
14Mpa |
|
5 |
Flume dimension |
800*450mm |
|
6 |
Max Work Current |
30A |
|
7 |
Electrode Diameter |
Ф0.15-Ф3mm |
|
8 |
Max Process Deep |
400mm |
|
9 |
Max Processing Speed |
30-60mm(Ф1.0) |
|
10 |
Max Diameter to Deep Ratio |
≥300 |
|
11 |
Workpiece Material |
Steel/Aluminum/Copper/Carbide and Various of Conductors |
|
12 |
Working Medium |
Tap water/Ion free water |
|
13 |
Machine Exernal Dimensions |
1000×750×2000mm |
|
14 |
Machine Weight |
950kg |
II. The machine characteristics:

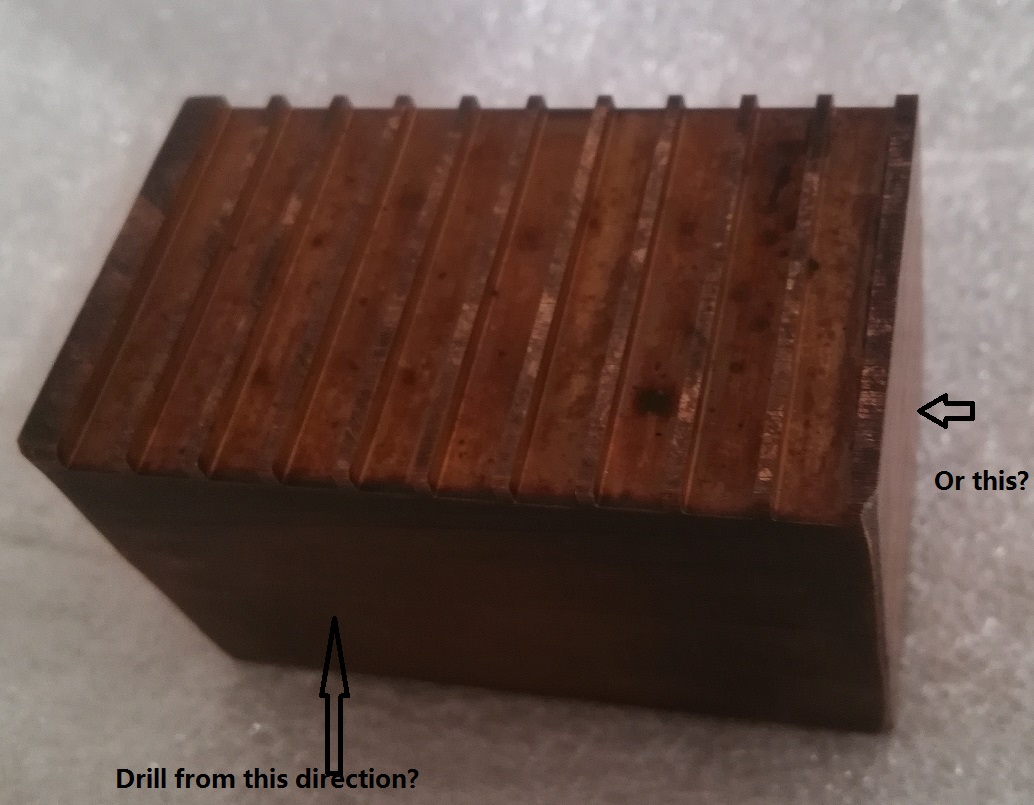

1. Process deep holes of diameter from Ф0.15-Ф3mm rapidly
2. Servo control system realizes speedy motion.
3. High accuracy movement by linear roller guides of Z axis.
4. X,Y,Z three axes adopt high accuracy ball screws for fast and agile movement.
5. X,Y axes base high precision V-shape and Flat rails with Teflon protection for high stiffness and wide travel.
6. Three axes DRO with linear scales, auto depth control helps blind holes process.
7. Water and dust proved panel in touching .
8. Smart Drill interface and digital frequency generator.
9. Special pump made in Taiwan.
10. Max process depth ≥400mm.
11. One touch, one hole made.
12. Rotating device sealed in plane structure by anti-rust material.
