3 Axis CNC Drilling EDM machine

1.X/Y/Z 3 AXIS CNC 2.Electrode diameter:0.15mm-3.0 mm 3.WindowsXP systerm 4. Program with AUTO CAD List MDI etc 5.LCD tough screen

wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools

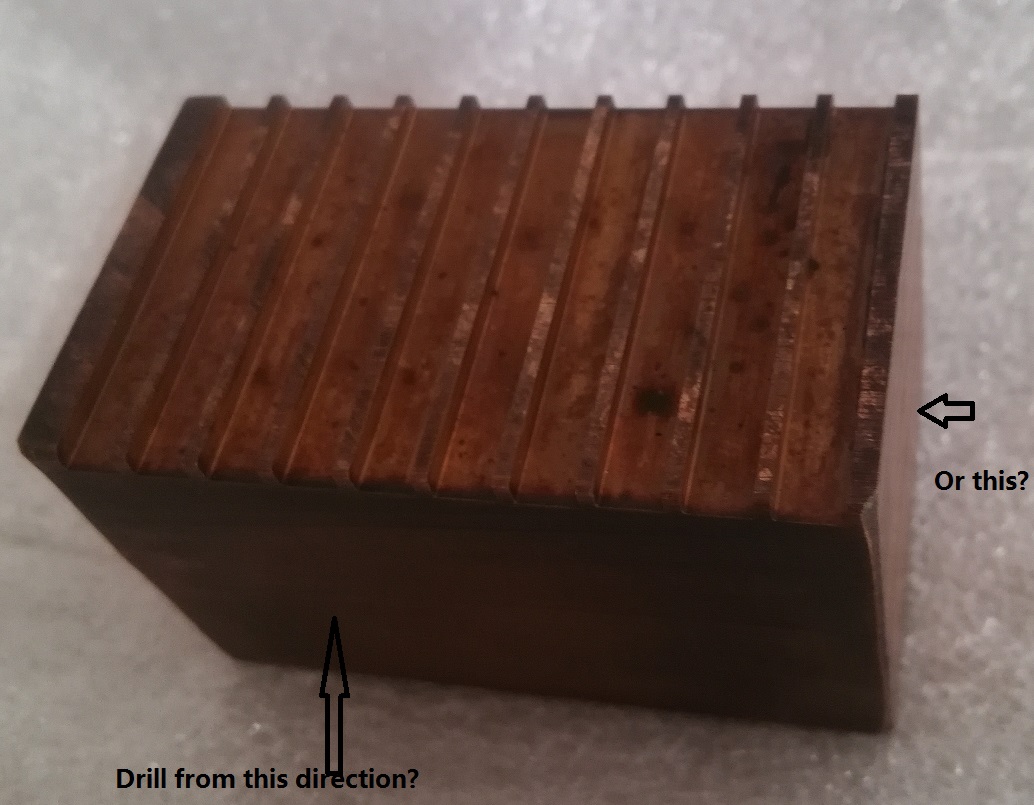

Detailed description

Main Specification

Item No:	TD403CNC
Worktable size(L×W)	550*360 mm
Table travel(X×Y)	400*300mm
Z axis travel	370 mm
W axis travel	300mm
Max distance between work table and guider	400mm
Max. drilling speed	30-120mm/min
Working liquid pressure	0-10Mpa
Max. working current	30 A
Electrode diameter	0.15-3.0 mm
Max workpiece weight	500kg
Max X Y axismoving speed	≥2000mm/min
X Y Z driving	AC motor of FUJI Japan
Move the minimum unit	0.001mm
Axis moving control mode	Electric wheel
Input/output interface	USB LAN RS-232
Working solution	water
Control mode	Moving card
Screen display	15″LCD touch screen
Program	MDI CAD LIST
Screw compensation	Yes
Positioning accuracy	0.012
Repeat positioning accuracy	0.006
Power supply	380V /50 Hz
Max. Power consumption	3.5 kw
Machine dimension	230021002250mm

I. Features:
1. Support program from CAD 2. Support USB and LAN 3. Save the programs and no holes limit 4. Industrial PC 5. AC servo motors and balls crews for high accuracy 6. Up to 4 axes can be moved together 7. Precision hole drilling 8. AC servo motors for axes moving




II. The machine characteristics :
1.Casting body with good quality 2. All in one design 3. Adjusting control box 4. X Y Z precision Hiwin linear guide from Taiwan 5. All moving by AC motor of Fuji japans 6. Windows friendship interface 7. 3 axis EDM Drilling software 8.Program with AUTO CAD List MDI etc 9.100L stainless water tank with filter and level control system 10. High pressure pump made in Taiwan 11. LCD tough screen 12. Electronic wheel for axis moving 13. Carbide sealing made in Taiwan 14.Guider holder made in Taiwan 15. Guider from Taiwan 16. Marble table 17. Stainless level block
