Super Drilling EDM machine

1. Drilling deep holes of diameter from Ф0.3-Ф3mm rapidly. 2. Max drilling depth ≥300mm. 3. Max driling Speed: 30-60mm(Ф1.0mm)

wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools

Detailed description

I. Specification

Model		TD703SA
1	Worktable Dimension	550×360㎜
2	Travels X×Y×Z	400×300×（380+250）㎜
3	Max Load on Work Table	150kg
4	Max Pressure of Working Water	6Mpa
5	Flume dimension	800*450mm
6	Max Work Current	30A
7	Electrode Diameter	Ф0.3-Ф3mm
8	Max Process Deep	400mm
9	Max Processing Speed	30-60mm(Ф1.0)
10	Max Diameter to Deep Ratio	≥300
11	Workpiece Material	Steel/Aluminum/Copper/Carbide and Various of Conductors
12	Working Medium	Tap water/Ion free water
13	Machine Exernal Dimensions	900×900×1800mm
14	Machine Weight	650kg

II. The machine characteristics:

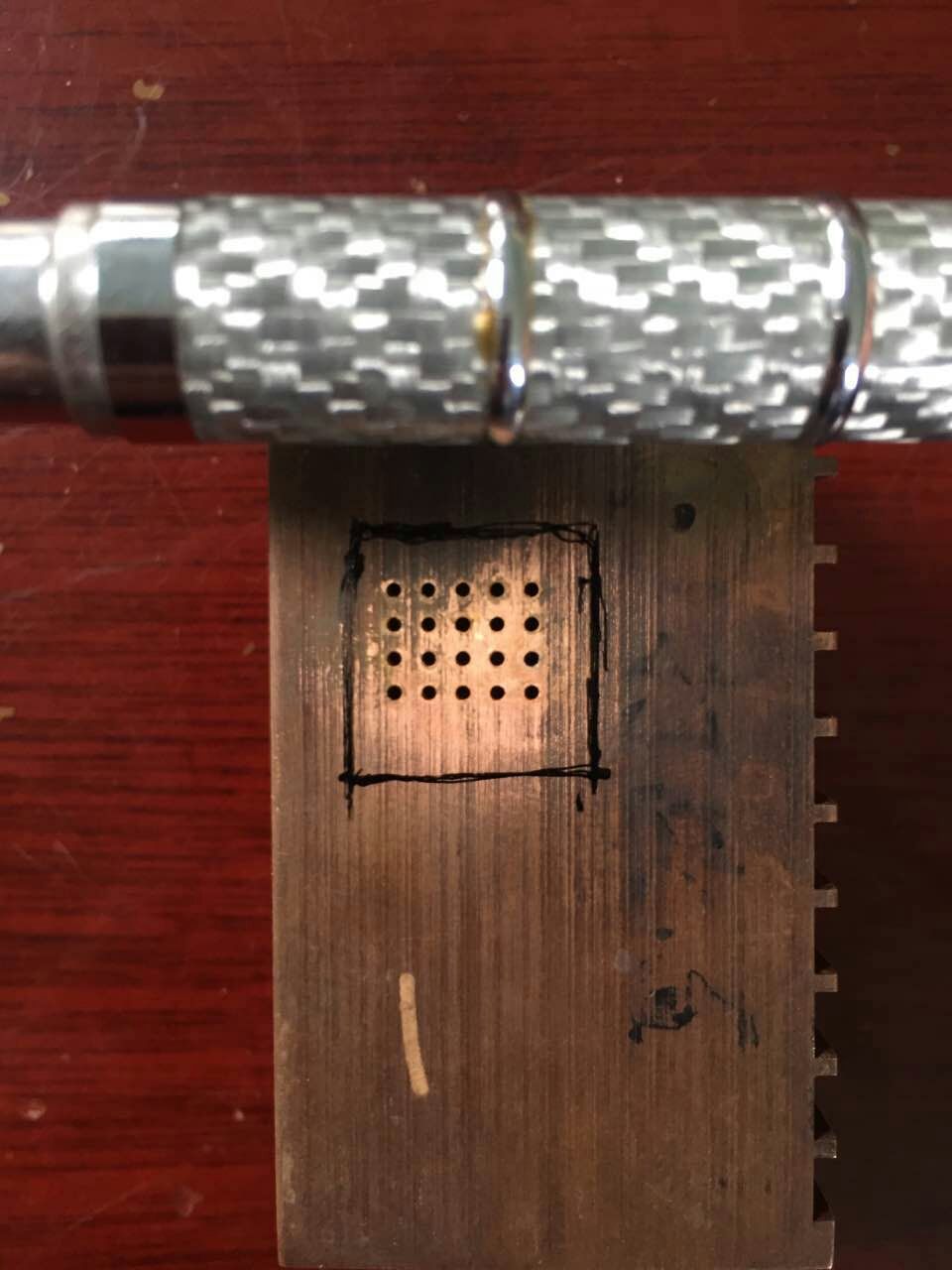

1. Process deep holes of diameter from Ф0.3-Ф3mm rapidly

2. Servo control system realizes speedy motion.

3. High accuracy movement by linear roller guides of Z axis.

4. X,Y,Z three axes adopt high accuracy ball screws for fast and agile movement.

5. X,Y axes base high precision V-shape and Flat rails with Teflon protection for high stiffness and wide travel.
