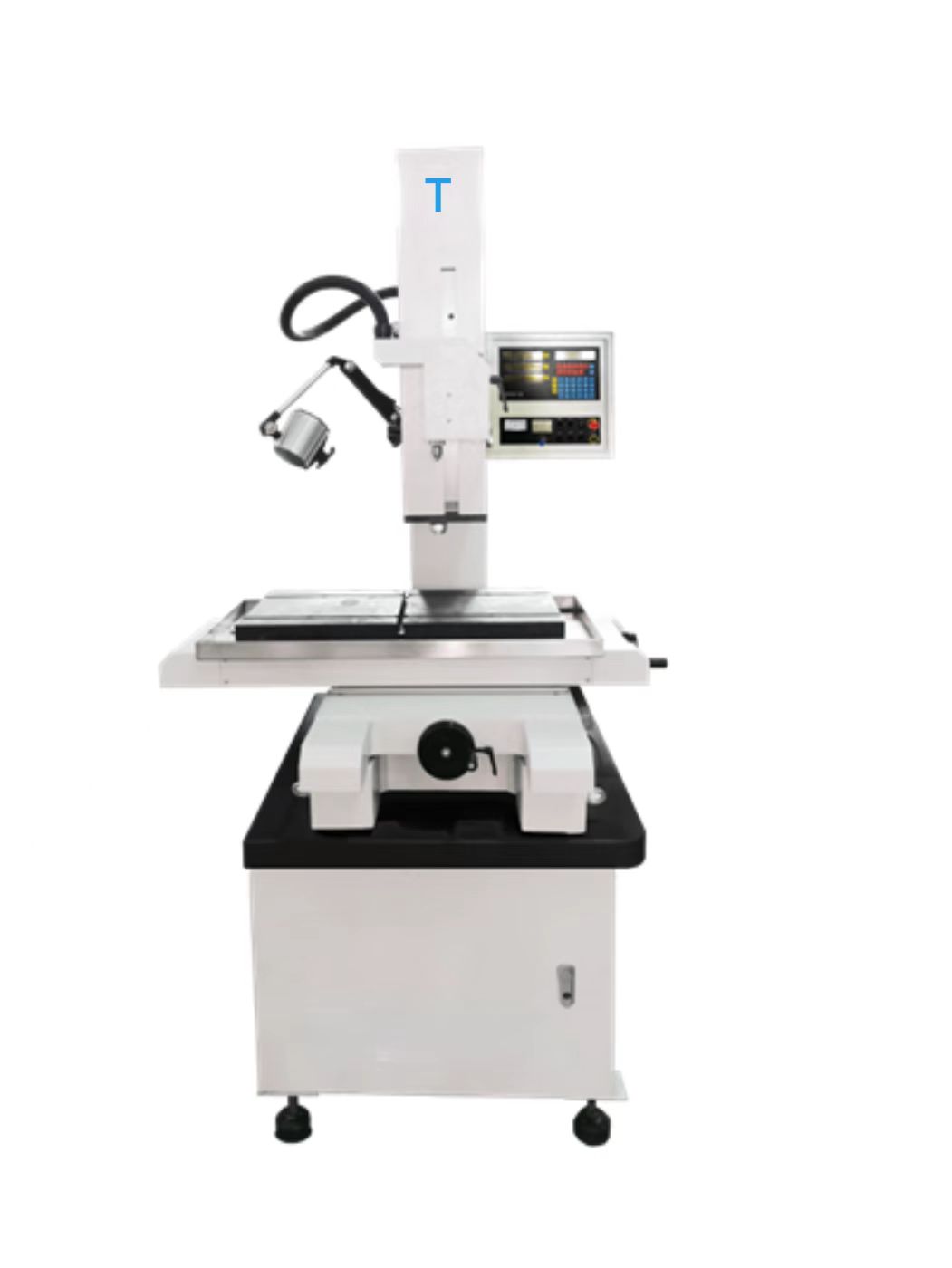

Larger Type Drill EDM Machine

I． The characteristics of the drill EDM machine:

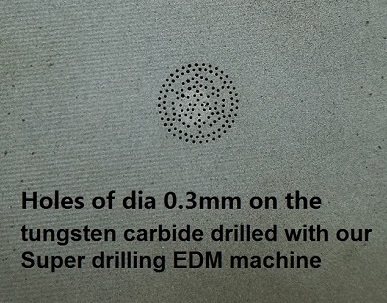

1. Drill the deep holes of diameter: 0.2-3.0mm rapidly

2. Servo motor drive Z axis move rapidly

3. Z axis mounts on linear guides for high precession

4. X, Y, Z axes adopt ball screw for moving with high stiffness

5. Special pump with high pressure for drilling from Taiwan

6. Auto depth control helps making blind holes easier

7. One touch one hole drilled, Z axis control(optional)

II． Advantages of the Drill EDM machine

1. Strong machine body

2. Accuracy electrode guide

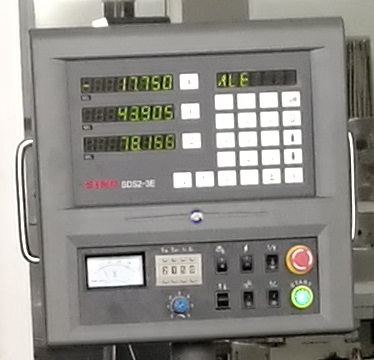

3. Long usage life operation panel:

4. High quality pump and filter

III． Specification of Small hole Drill EDM machine

Item	TD703SC
Worktable size(L×W)	700×400 mm
Table travel(X×Y)	500×400mm
Z axis travel	380+(300) mm
Max. drilling depth	0-370 mm
Max. drilling speed	60 mm/min
Max Pressure of Working Water	8 Mpa
Max. working current	30 A
Electrode diameter	0.2-3.0 mm
Load of table	150 kg
Working solution	water
Working Tanker	700*480mm
Power supply	380V /50 Hz
Max. Power consumption	3.5 kw
Machine dimension	1300×1100×2300 mm
Machine weight	750 kg
Controller type	Automatic Z axis
Digital Display	X, Y, Z axis
Function of setting depth	yes
