Economical CNC Small Hole Drilling EDM machine TE403

This machine is mainly used for drilling parts which are difficult to realize in plane group holes and various inclined planes, curved surfaces, deep and small holes, etc., can drill steel, aluminum, copper, castings, alloys, titanium alloys, conductive ceramics and other conductive materials of the blind hole and through-hole processing.
wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools
Detailed description

Economical CNC Small Hole Drilling EDM machine

TE403

I.  Features:

1. This machine is mainly used for drilling parts which are difficult to realize in plane group holes and various inclined planes, curved surfaces, deep and small holes, etc., can drill steel, aluminum, copper, castings, alloys, titanium alloys, conductive ceramics and other conductive materials of the blind hole and through-hole processing.

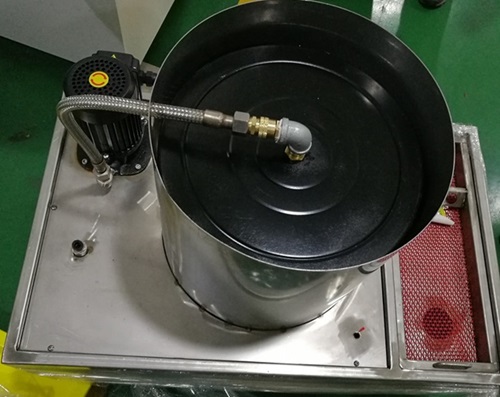

2.Basic structure: Includes the machine body, the numerical control pulse power control cabinet, the working fluid system and so on.

3. The machine body: Includes the machine bed, column, X-axis, Y-axis, Z-axis, w-axis (manual).



4. CNC Pulse Power Supply Control Cabinet: Includes Industrial Control Computer, CNC system, liquid crystal display, servo drive, machine tool appliances, high-efficiency amplifier, electric pulse power, etc.


II. The machine characteristics:

1.     All-in-one design, semi-enclosed stainless steel water tank and the back cover board.



 2.  With the machine tool integrated design of the electronic control system, with a minimum of connectors to achieve the most stable and reliable results.



3. Precision Ball screw and high-precision linear guideways are used to ensure the permanent and reliable operation of the machine tool.



4. The X-Y axis is driven by AC servo motor; the speed of moving axis is fast and the positioning precision is high.



5. Multi-function electronic hand box, to realize a series of functions such as shifting axis, locating, machining control, etc.

6. 4-axis linkage control (extended B-C axis).



7. Windows interface operating system man-machine dialogue, easy to use.



8. Using industrial control computer, running fast, stable and reliable.



9. Use self-developed CONTRA CNC EDM drilling special software (support for the follow-up software upgrade services).

10. Flexible and diverse programming methods, support direct conversion of CAD, MDI list programming, etc.



 11. Support simple G code instructions, greatly facilitate the use of operators, efficiency increased by 2 times.



12.The system can save the machining program to record the process parameters of each hole and can be used for quality analysis.



13. Multiple data transfer modes (USB LAN RS232).

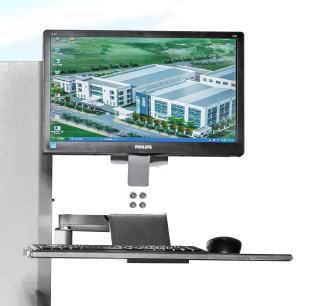

14. 15' HD LCD liquid crystal display screen.



15. Guide holder made in Taiwan, long-lasting accuracy and easy adjustment

16. Precision cemented carbide seal rotating head, with good sealing performance and rotating accuracy.

17. High pressure pump, low noise, stable and reliable pressure, especially suitable for small electrode processing.


III. Model TE 403 CNC Speciation

Specification

Item No:

TE403

Worktable size(L×W)

550*360 mm

Table travel(X×Y)

400*300mm

Z axis travel

380 mm

W axis travel

250mm

Max distance between work table and guider

260mm

Max. drilling speed

30-60mm/min

Working liquid pressure

0-11 Mpa

Max. working current

30 A

Electrode diameter

0.25-3.0 mm

Max workpiece weight

150kg

Max X Y axis moving speed

≥2000mm/min

X Y Z driving

AC motors for X/Y axis, DC servo motor for Z axis

Move the minimum unit

0.001mm

Axis moving control mode

Electric hand box

Input/output interface

USB LAN RS-232

Working solution

Clean water

Control mode

Industrial computer control card

Screen display

15″LCD touch screen

Program

MDI CAD G code

Positioning accuracy

0.025

Repeat positioning accuracy

0.02

Power supply

380V /50 Hz

Max. Power consumption

3.5 kw

Weight

700Kg

Machine dimension

1260*1140*1900mm


IV. Main parts list

NO.

Name

Model

Brand

Origin

1

Servo motor

MS1H4-40B30CB

Huichuan

China

2

Driver

IS620PS2R8I

Huichuan

China

3

Linear guide

LEG20C

Hiwin

Taiwan

4

Ball screw

FN2005-447

Haosen

China

5

Industry computer

DPC-Z3-W(ST-NA10Z)

Siteming

China

6

Moving control card

ADT8940

ZWX

China

7

LCD display

163V5LSB2

PHILIPS

Holland


8

Electronic hand box

HTD-B70-PL7-MOS-M

HT

China

9

Air switch

DZ47-60-C25

Chint

China

10

Contactor

LC1D09\12\T25

Schneider

France

11

Miniature relay

G5V-2

Omron

Japan

12

Switching power

NES-75-24

Mingwei

Taiwan

13

PLC module

FX3GA-24MR

Mitsubishi

 Japan

14

High power COMS tube

 IRFP250

IR

USA

15

High power 3 phase rectifier

75A

SANREX

 Japan

16

Electronic Hand Box



ZG

China

17

Rotating head



ZG

China

18

Screw rod bearing



NSK

Japan

19

Casting

HT250 second tempering

GS

China

20

Machine tool sheet

Metal spraying

GS

China
