A Small Hole Drill EDM machine, also known as EDM hole drilling machine or EDM micro drilling machine, is a specialized tool used for creating precision holes in conductive materials. Here are some advantages of using a Small Hole Drill EDM machine:

1. High Precision: Small Hole Drill EDM machines are capable of creating extremely precise holes with tight tolerances, making them ideal for applications where accuracy is critical.

2.Intricate Hole Shapes: They can create holes with complex shapes, angles, and contours that may be difficult or impossible to achieve with conventional drilling methods.

3.High Aspect Ratio Holes: These machines can produce holes with a high aspect ratio (depth to diameter ratio:300:1), which can be challenging to achieve with traditional drilling techniques.

4.No Tool Wear: Since EDM hole drilling uses electrical discharges rather than physical contact with a cutting tool, there is minimal tool wear, resulting in longer tool life.

5.No Material Hardness Limitation: Small Hole Drill EDM machines can be used to create holes in extremely hard materials, including hardened steels and exotic alloys.

6.Reduced Heat-Affected Zone: The process generates very low levels of heat, minimizing the heat-affected zone around the hole. This is important for materials that are sensitive to heat-related distortions.

7.No Burr Formation: Unlike some traditional drilling processes, EDM hole drilling produces clean, burr-free holes, eliminating the need for secondary deburring operations.

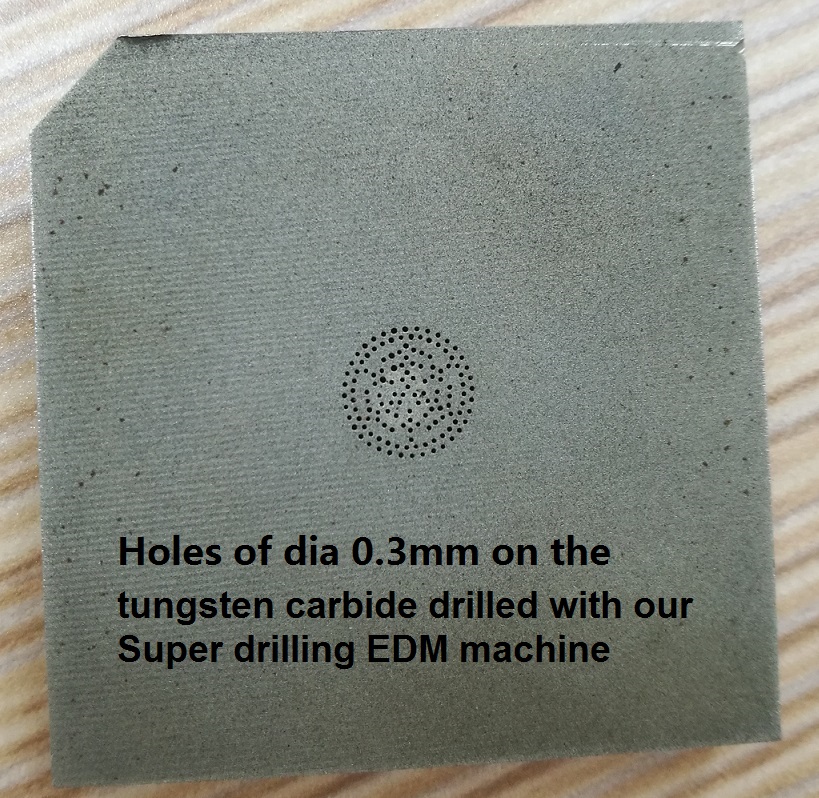

8.Small Hole Diameters: These machines are capable of creating holes with very small diameters(Normally from Dia. 0.2mm-Dia.3.0mm), sometimes as small as a fraction of a millimeter.

9.Multi-Axis Machining Capability: Advanced Small Hole Drill EDM machines may have multi-axis capabilities, allowing for complex hole patterns in multiple directions.

10.Non-Conductive Workpieces: Since the process relies on electrical discharges and not physical contact, it can be used on non-conductive materials as long as they are electrically conductive when submerged in a dielectric fluid.

11.Suitable for Brittle Materials: Small Hole Drill EDM is particularly effective for drilling holes in brittle materials that may be prone to cracking or chipping with conventional drilling methods.

12.Reduced Workpiece Contamination: Because there is no direct contact between the tool and the workpiece, there is minimal risk of contamination from tool material.

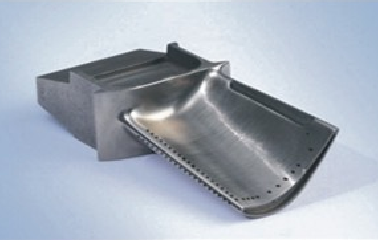

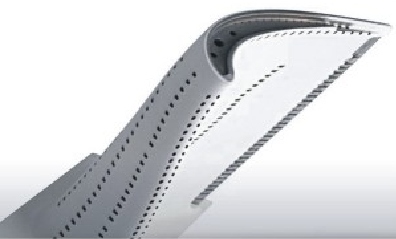

13.Versatile Applications: Small Hole Drill EDM machines find applications in various industries, including aerospace, medical device manufacturing, automotive, and electronics, where precision hole-making is crucial.

These advantages make Small Hole Drill EDM machines a valuable tool for industries that require high-precision hole-making capabilities in a wide range of materials.
