CNC Sinker EDM machine

High quality Ram types CNC sinker EDM machines are offered in Tech EDM Trade Co., Ltd at a reasonable price.
wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools
Detailed description

I. Parameters:



Specification

Model NO.

Specification

 TR450CNC

 TR540CNC

 TR650CNC

 TR850CNC

 TR1260CNC

 TR2180CNC                                (2 heads )

X*Y*Z Travel (mm)

450×350×300

500X400X300

650*450*400

800*500*400

1200*600*500

1500*800*600

Working table size L*W (mm)

700×400

750X450

900*600

1100×600

1250×800

2500*1200

Max electrode weight (Kg)

100

120

150

200

200

300

Machine load (kg)

1000

1800

2500

3000

4500

8000

Distance between electrode and working table (mm)

320-620mm

400-700

400-800

500-900

500-1000

750-1350

Size of oil reservoir (mm)

1080×700×450

1440X800X500

1650×950×550

1800×1100×570

2100×1250×620

3500×1800×800

Machine weight (kg)

2500

3300

3500

4500

6500

16000



II. Features:

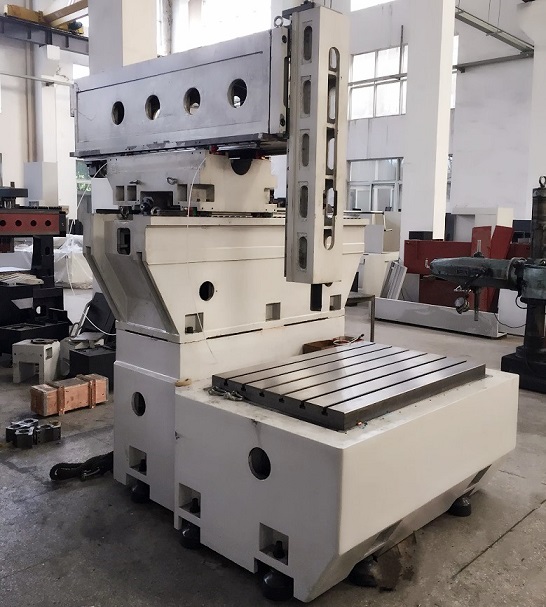

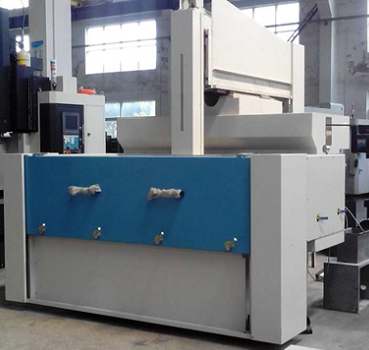

1. Heavy duty casting(Applying the  resin sand method to remove the  internal stress. and  the weigh of the machine is 10% more than other China manufacturers);

2.  The machine is equipped with C3 class ball screw and linear guide ways imported from Taiwan;

3.  The machine body cast is one whole structure which is more stable, and the positioning accuracy is 50%-70% higher than China standard( 9 points checked on the worktable surface);

4. 2 times higher oil output pump than other competitors.( Dia100mm oil tubes ) ;

5. 3-5 pieces of oil sucking pipes to ensure the machining oil or door opening.

6. New designed  filtration system( bigger filter or 6 pcs filters), to ensure the clear and fast oil output;

7. Up-down type oil tank door, which is easy for operators to open or close  the door with just two fingers.

8. All oil tubes are higher pressure type tubes;

9.Central lubrication system for moving part.( Just once in one month to lubricate it.)

10. The machine can meet the Korean market clients.



III. Standard Accessories



a)3 axis linear guideway( Hi win/PMI)

b) High quality Pump( Luokai)

c) C3 class ball screw(Taiwan brand).

d) Lubrication pump( Shengxiang)

e) Standard toolbox (Tools included) 1piece

f) Operation manual 1piece

g) Hand fire extinguishers 1piece(dry type)
