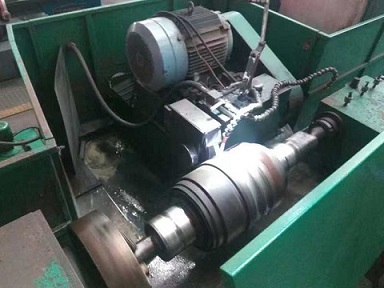

CNC Grinder for High Speed Steel Wire Roll Rings Grinding

This machine tool is a special NC equipment for grinding the outer circle and groove of the high-speed wire roll rings (carbide). The machine has won the Science and Technology Progress Award of the Ministry of Machinery and belongs to the national high-tech products. The equipment has been widely used in many rolling enterprises in China and exported to overseas.

wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools

Detailed description

CNC Grinding Machine

for Carbide Roll Rings Forming

I. Brief Introduction:

This machine tool is special NC equipment for grinding the outer circle and groove of the high-speed steel wire/ rod roll rings (carbide). It has won the Science and Technology Progress Award of the Ministry of Machinery and belongs to the national high-tech products. And it has been widely used in many high speed steel wire/rod rolling enterprises in China and exported to overseas.

II. Advantages:

1. Grinding head guide way adopts closed self-lubricating guide way with good rigidity.

2. The spindle adopts imported precision bearings with high rotating accuracy.

3. The roll ring clamp adopts self-centering elastic expanding sleeve clamp, which is high centering accuracy and convenient work piece clamping.

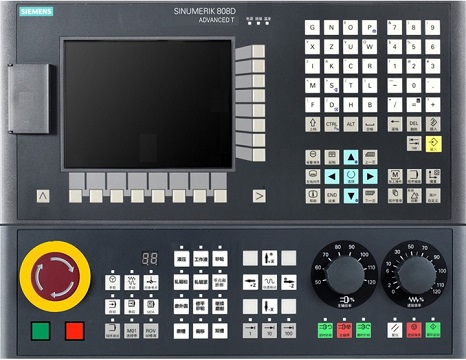

4. Siemens CNC system is highly automated and reliable.

III. Main specification

Grinding Machine of High Speed Steel Wire Roll Rings
Grinder for steel wire/rod roll rings	Model	DCS-002Da
Parameters	Unit	Value
Outer diameter of grindable roll ring	mm	Ø 50- Ø 400
Max diameter of the roll ring inner hole	mm	Ø 60
Headstock center height	mm	220
Worktable drive motor	N•m	11 N•m Siemens AC servo motor
Max worktable travel	mm	250
Workpiece grinding length	mm	200
Max workpiece weight	Kg	150
Worktable moving NC equivalent	mm	0.001
Grinding head feed motor	N•m	11 N•m Siemens AC servo motor
The max travel of the grinding head	mm	200
Grinding head movement NC equivalent	mm	0.001
Grinding head main motor power	KW	18.5
Diameter of the grinding wheel	mm	Ø200～Ø300×Ø127, Ø250×Ø127 is suggested
Grinding wheel speed	rev / min	2000
Headstock motor	N•m	11 N•m Siemens AC servo motor
Headstock spindle speed	rpm	0-60 step less speed regulation
Dia. of air outlet in the Large cover	mm	φ150
Machine power	KVA	30
Processing method	*	Mechanical grinding
Working fluid	*	grinding fluid
Machine size (L* W * H)	mm	2240 * 1720 * 1810
Machine weight	KG	4500
Processing accuracy:
Cylindrical deviation of out circle	mm	0.01
Outer diameter tolerance	mm	±0.005
Hole diameter tolerance	mm	±0.01
Hole depth tolerance	mm	±0.005
The best surface roughness for grinding	um	Ra≤0.4
Position center tolerance of roll ring face	mm	±0.01
