Do you still face the wire broken problem when cutting aluminum jobs on wire cut EDM machine? Do you still face the power feed contacts wear off quickly when cutting aluminum jobs on wire cut EDM machine?

For the aluminum alloy job is soft, the cutting chip will cover the molybdenum wire during the cutting. And under this working condition, it is easier for the molybdenum wire to be broken during running. And the power feed contacts wear off quickly for the running wire covered by aluminum chips too.

To solve the wire broken and power feed contacts wear off fast problems, our engineers have developed one Tungsten Copper Alloy wire. And we applied the patent for this new EDM wire for aluminum jobs cutting successfully. With this latest EDM wire, you can solve the wire broken and power feed contacts wear off fast problems too. Take the following test for example, Aluminum height: 60mm, the machining current is 4A, and cutting speed can be 5000-6000 square mm per hour. And the wire life is more than 24 hours.

Additionally, the cost of this kind EDM wire is much lower than the Molybdenum wire too.

Here is the detailed information about this latest EDM wire as following:

Name: EDM Wire for Aluminum Cutting

Item No: T-W-ALW

Description:

1. Diameter of the Molybdenum wire: 0.2mm

2. Material: Tungsten Copper Alloy

3. Advantages:

(1) Higher tensile strength and higher toughness;

(2) Lower extensibility(less than 2%)

(3) Better straightness (Easier for wire threading)

4. Color: Red (Like Copper color)

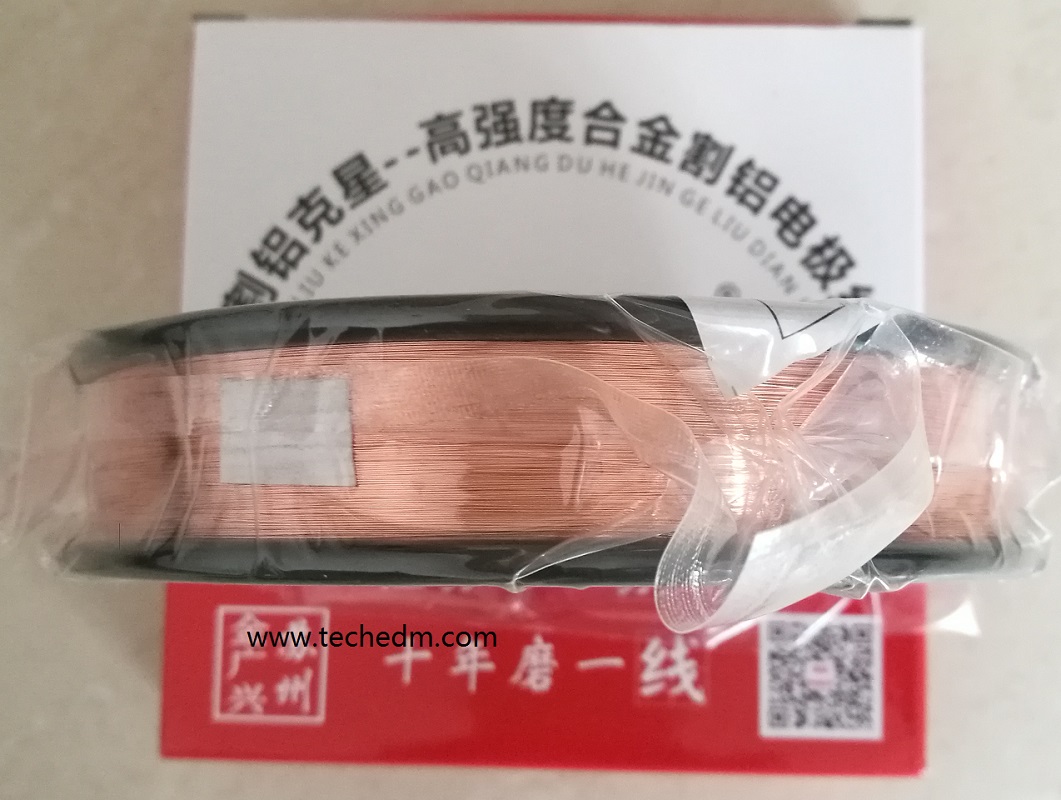

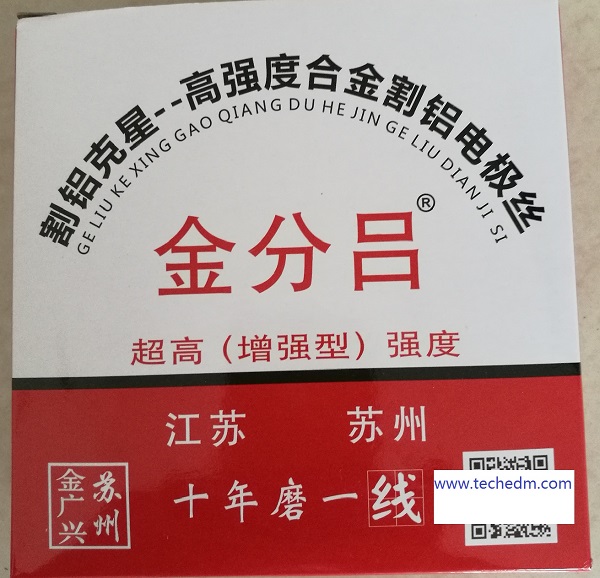

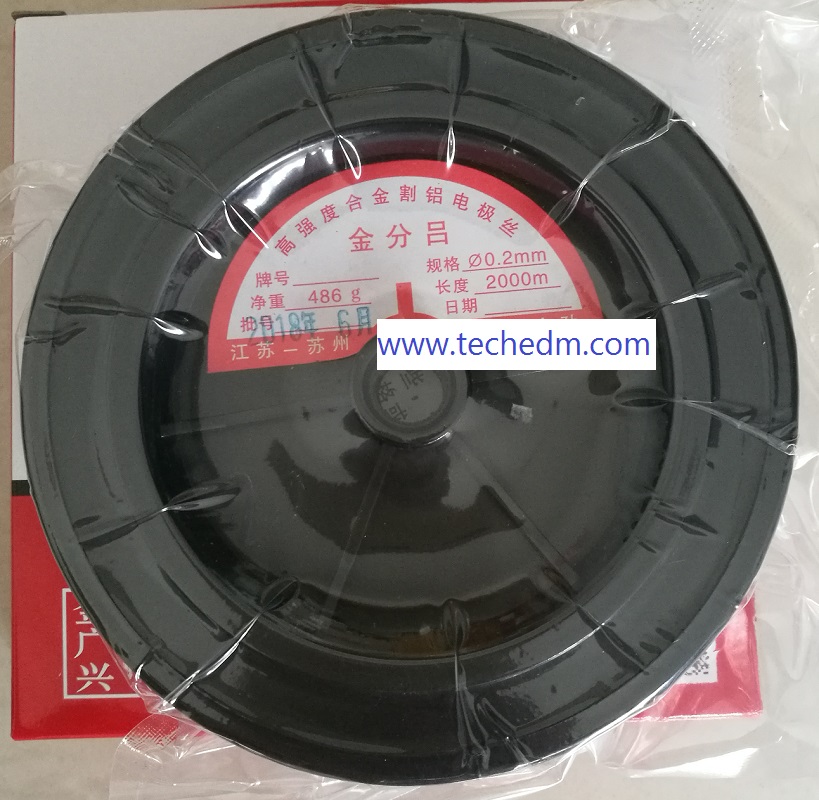

5. Package: 2000meter per spool; one spool in one carton (30 spools per carton)

6. G/weight: 0.63Kg/spool

7. Usage: Tungsten Copper Alloy Wire is used for Aluminum jobs cutting on the wire cut EDM machines (When cutting 60mm height aluminum job, the cutting speed is 5000-6000sq mm/hour, and the usage life of each time (350m) is around 24 hours.

If you have any question during cutting aluminum jobs, please feel free to contact us.

Have a Nice day.
