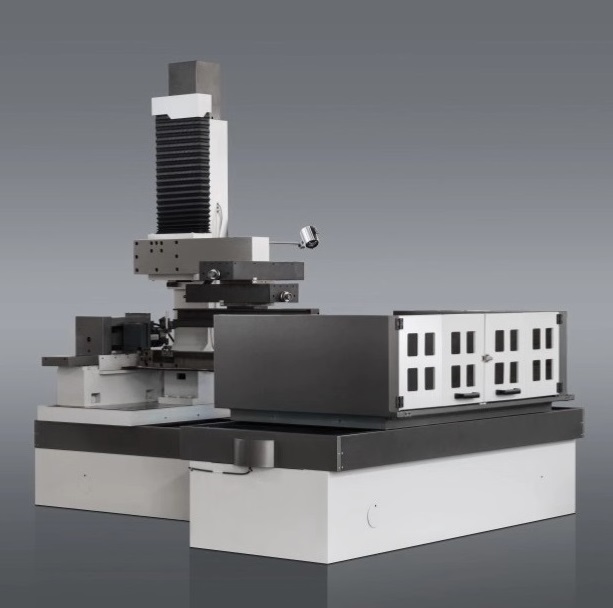

FRQ about operation of the wire cut EDM machine

Here’s a list of frequently asked questions (FRQs) about the operation of a Wire Cut Electrical Discharge Machine (EDM):


1. What is Wire Cut EDM?

  • Wire Cut EDM is a precision machining process that uses electrical discharges (sparks) to cut conductive materials. It involves a thin wire acting as an electrode, which erodes the workpiece by generating controlled electrical sparks.

2. How does Wire Cut EDM work?

  • The machine uses a thin wire (typically brass or copper) as a cutting tool. The wire never touches the material directly. Instead, electrical discharges occur between the wire and the workpiece, causing localized melting and vaporization of material.

3. What materials can be machined using Wire Cut EDM?

  • Wire Cut EDM is used to machine conductive materials such as:
    • Steel (hardened or soft)
    • Aluminum
    • Copper alloys
    • Titanium
    • Carbides
    • Tungsten

4. What are the main components of a Wire Cut EDM machine?

  • Wire (electrode): Used for cutting the material.
  • Power supply: Generates electrical discharges.
  • Dielectric fluid: Helps to control the sparking process and flush away debris.
  • Workpiece: The material being cut.
  • Wire guides: Guide the wire precisely along the intended cutting path.
  • CNC control system: For precise movement and control of the machine.

5. What type of wire is used in Wire Cut EDM?

  • The wire is typically made of brass, copper, tungsten, or molybdenum. It usually ranges from 0.1 to 0.3 mm in diameter and can be either coated or uncoated depending on the application.

6. What is the role of dielectric fluid in Wire Cut EDM?

  • The dielectric fluid (usually deionized water) acts as an insulator between the wire and the workpiece. It also helps cool the area, flush away eroded particles, and control the sparking process.

7. How does Wire Cut EDM achieve high precision?

  • The wire is controlled by a CNC system that follows highly accurate programmed paths. Additionally, the lack of mechanical contact between the wire and workpiece prevents deflection and tool wear, ensuring precision.

8. What are the advantages of Wire Cut EDM?

  • Ability to machine hard and brittle materials.
  • High precision and tight tolerances.
  • No contact between tool and workpiece, so minimal tool wear.
  • Capable of creating complex and intricate shapes.
  • Can cut materials without inducing mechanical stresses.

9. What are the limitations of Wire Cut EDM?

  • Only conductive materials can be machined.
  • Slower machining speed compared to conventional processes.
  • Wire consumption and dielectric fluid require regular replacement.
  • Heat-affected zones (HAZ) may occur near the cut surfaces.

10. How is cutting speed controlled in Wire Cut EDM?

  • Cutting speed depends on several factors:
    • Wire tension and feed rate
    • Electrical discharge power settings (voltage, current)
    • Workpiece material and thickness
    • Dielectric fluid flow rate

11. How is the surface finish controlled in Wire Cut EDM?

  • Surface finish is affected by discharge energy and pulse frequency. Higher discharge energy produces faster cuts but a rougher surface finish, while lower energy creates a smoother finish at the cost of slower cutting speeds.

12. How do you prevent wire breakage during EDM operation?

  • Wire breakage can be minimized by:
    • Adjusting wire tension appropriately.
    • Reducing discharge energy to decrease the intensity of sparking.
    • Using clean dielectric fluid to prevent debris build-up.
    • Monitoring the wire feed rate.

13. How do you ensure optimal accuracy in Wire Cut EDM?

  • Factors affecting accuracy include:
    • Precision of the CNC system.
    • Correct wire positioning and guidance.
    • Use of high-quality wire and properly maintained wire guides.
    • Correct settings for discharge energy and pulse control.
    • Regular maintenance and calibration of the machine.

14. What is the difference between Wire EDM and Conventional EDM?

  • Wire EDM uses a continuous wire as the electrode and is primarily used for cutting profiles and contours.
  • Conventional EDM (Die Sinking EDM) uses a shaped electrode to erode material, typically used for cavities and complex shapes within the workpiece.

15. How is the wire managed in the EDM process?

  • The wire is fed continuously from a spool, passing through wire guides. The used wire is discarded after it has passed through the cutting zone, ensuring fresh wire is always in use.

16. What is the typical tolerance level achievable with Wire Cut EDM?

  • Wire Cut EDM machines can achieve tolerances as tight as ±0.001 mm to ±0.005 mm, depending on the machine setup and material.

17. What maintenance is required for Wire Cut EDM machines?

  • Regular cleaning of the dielectric tank and flushing system.
  • Replacing the wire spool and worn-out wire guides.
  • Checking and adjusting the wire tension and alignment.
  • Calibration of CNC controls and servo motors.

18. How do you program a Wire Cut EDM machine?

  • Most Wire EDM machines are CNC-controlled, meaning they require programming using G-code or specialized CAM software. Operators input the cutting path, material data, and machine parameters to guide the wire accurately.

19. What safety precautions should be taken when operating a Wire Cut EDM machine?

  • Ensure proper handling and disposal of used dielectric fluid.
  • Regularly inspect the wire spool and tension to prevent breakage.
  • Wear safety equipment, such as gloves and goggles, when operating and maintaining the machine.
  • Ensure proper grounding of the machine to avoid electrical hazards.

20. What are the common applications of Wire Cut EDM?

  • Creating precision parts for aerospace, automotive, medical, and mold-making industries.
  • Cutting complex shapes in tool and die manufacturing.
  • Machining of small, intricate parts that require high precision.

These questions cover the fundamentals of operating and understanding Wire Cut EDM machines. Are you looking for more detailed technical information on any specific aspect? If so, please feel free to contact me.
