CNC Milling&Engraving Machines

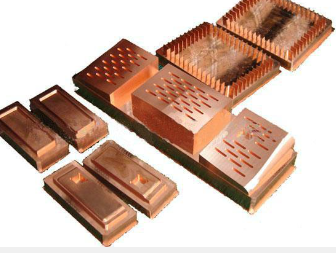

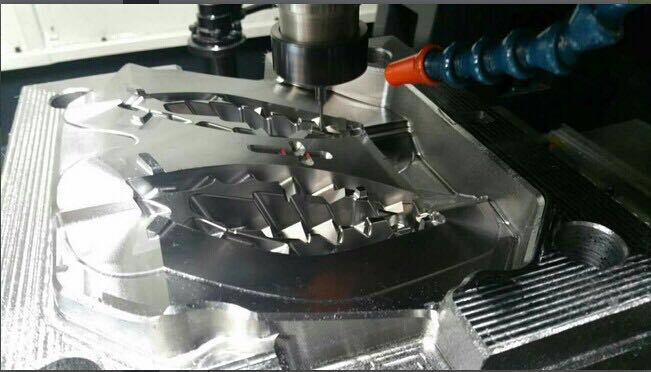

The CNC Milling& Engraving machine is used for copper/brass electrodes / steel mould machining.
wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools
Detailed description

Specification of Milling & Engraving Machines



I.                 Advantages of our Milling& Engraving machine:

1.     Higher precision(3um/300mm)

2.     Higher machining efficiency( Suitable for copper/brass electrode/ steel mould making)

3.     Longer and continuous running time for the good surface and light duty jobs.


II.               Main Specification



Specification of Milling & Engraving machines

Machine models

Unit

ME4045

ME5050

ME6060

ME7080

ME1080

Travel

X Axis

mm

450

500

600

700

800

 Y Axis

mm

400

500

600

800

1000

 Z Axis

mm

200

250

250

300

300

Table upper surface to spindle nose end face

mm

30-230

60-310

60-310

60-360

60-360

Gantry

Gantry Width

mm

500

600

660

800

850

Ball screw type

*

2505

3205

3205

3205

3205

Linear guideway type

*

X/Y/Z: H25

X/Y/Z: H25

X/Y: H30;/Z:H25

X/Y/Z: H30

X/Y/Z: H30

Accuracy

Positioning

mm

±0.005/300

±0.005/300

±0.005/300

±0.005/300

±0.005/300

Repeatability

mm

0.003/300

0.003/300

0.003/300

0.003/300

0.003/300

Table

Table dimension

mm

400*400

550*500

550*650

700*800

750*1000

Max. load on table

Kg

100

200

300

400

600

T slot

mm

5-14

5-14

5-14

5-14

5-18

Spindle

Speed

rpm

3000~24000

3000~24000

3000~24000/21000

3000~24000  /18000

3000~24000   /18000

Spindle Power

Kw

1.6/2.2

3.2

3.2/4

3.2/4

4/5.5/7.5

Spindle  Type

*

High speed electric spindle

ATC

Armless type

PCS

12

12

12

12

12

Exchange time

Sec

7

7

7

7

7

Tools

Tools Dia.

mm

¢3-¢12

¢3-¢12

¢3-¢12

¢3-¢12/¢16

φ3-φ12/16-φ20

Feeding

Rapid speed(X/Y/Z)

mm/min

12000

12000

12000

12000

12000

Package

Weight

Kg

1000

2300

2600

3200

3500

Dimension

mm

1400*1373*
1950

2068*2000*
2300

2370*2010*
2300

2280*2485*
2400

2750*2284*
2400



III.               Main accessories:

Item

Name

Brand/Origin

Remark

1

Controller

Taiwan Syntec LNC(Baoyuan)



2

Spindle

Xingchen

2.2/3.2/4.0/5.5/7.5kw  24000rpm/min,18000rpm/min

3

X/Y/Z axis motors

Yaskawa

0.4kw/0.75kw/0.85kw

4

Couple

Guangda



5

Ball screw

PMI/HIWIN

C3

6

Linear guide way

PMI/HIWIN

High accuracy



X/Y/Z covers

China

Stainless steel



Full protection cover

China

Plastic spraying

7

Lubrication system

Nanjing

Concentrated oil injection

8

Bearing

NSK/NACHI



9

Spindle coolant

Tongfei



10

ATC

 12 Positions





IV.             Optional accessories:

1.      Fargo/Mitsubishi controller

2.      Oil cooler for spindle

3.      Tool setting gauge
