Tunsten Carbide End Mills

HPC End Milling Tools are available at a reasonable price in our company.
wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools
Detailed description

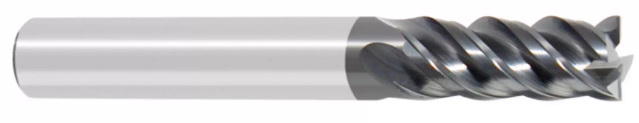

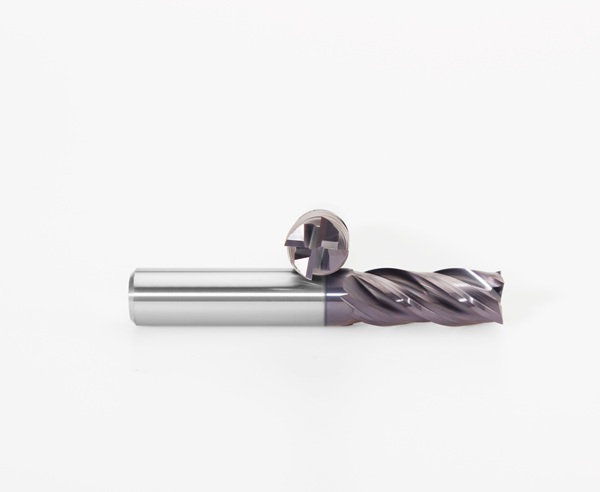

Name: Carbide End Mills


Features: High-feed geometry, strong tool body, advanced coating.

Advantages: Enables deep cuts & high feeds with excellent stability.

Benefits: Removes metal faster, cuts total job time, lowers cost.



1.Material: Tungsten carbide;

2. Suitable for materials of hardness 25-40HRC;

3. Surface Coating: AlCr;

4. With the uneven angles flute as above picture;

5. The lateral pressure on the tool handle（Optional）


6. Specification (Unit: mm)

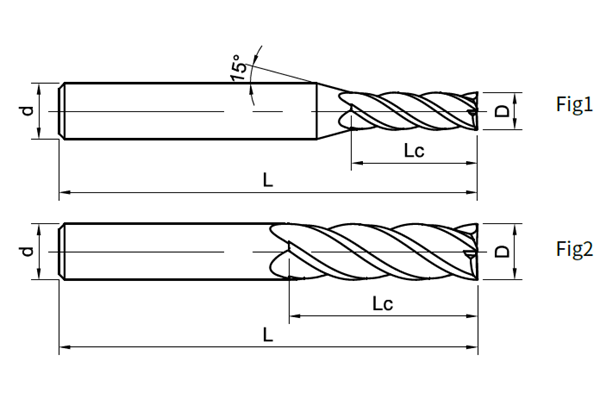

End milling tools dimension

Item No.

Dia. of cut (D)

Length of cut (Lc)

Overall Length(L)

Shank Dia(d)

No. of teeth(Z)

DIA-4

4

15

60

4

4

DIA-5

5

20

65

5

4

DIA-5

5

20

65

6

4

DIA-6

6

20

70

6

4

DIA-8

8

25

75

8

4

DIA-10

10

35

100

10

4

DIA-12

12

45

100

12

4

DIA-16

16

55

120

16

4

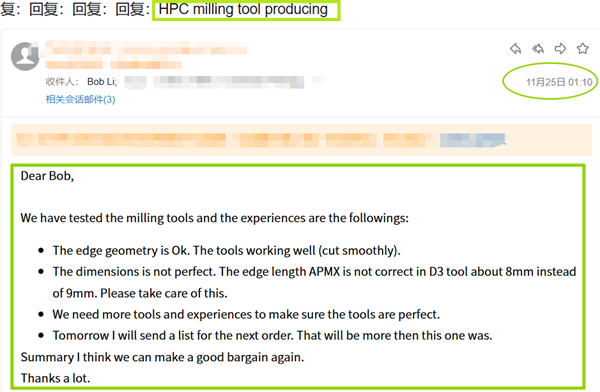

Evidence:

Customers are satisfied with its performance, and customer’s feedback as following
