Thread Electrodes

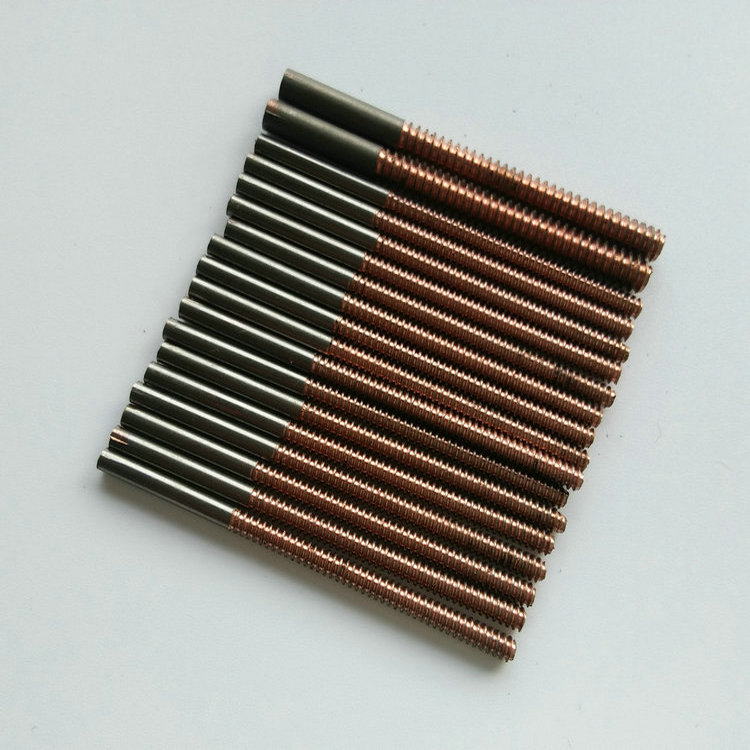

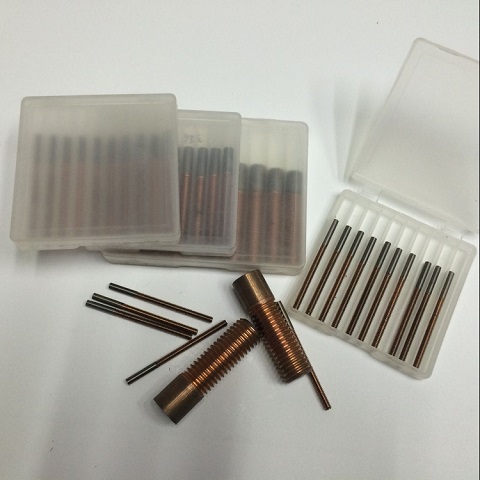

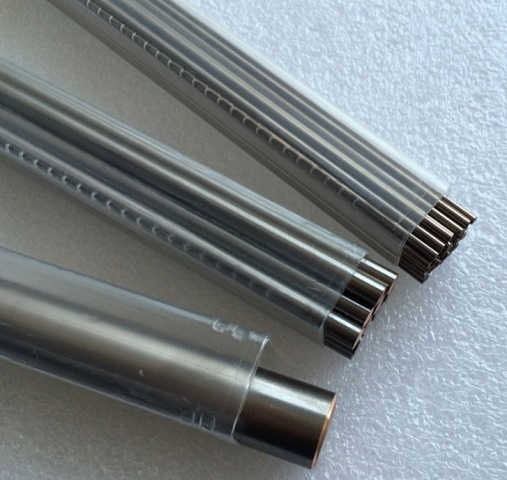

Tungsten copper thread electrodes are used for making threads with CNC Sinker EDM machine.
wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools
Detailed description

1.     Product Name: Thread Electrodes

2.     Material: Tungsten copper, W75%Cu25%

3.     Model:

Metric Thread  Electrodes (Tungsten Copper W70Cu30)

Normal sizes in stock

Tooth L:35mm*Total L50mm

Size

(mm)

Coarse Pitch (mm)

Holder Dia D(mm)

Thread Dia (mm)±0.1mm

  B thread    L(mm)  ±2mm

Total  L(mm) ±2mm

M1.2

0.25

0.80

0.80

8.00

40.00

M1.6

 0.35

1.20

1.20

15.00

40.00

M2

 0.4

1.50

1.50

20.00

40.00

 M2.5

 0.45

1.80

1.80

25.00

40.00

M 3

 0.5

2.30

2.30

35.00

50.00

M 3.5

 0.6

2.80

2.80

35.00

50.00

M 4

 0.7

3.00

3.00

35.00

50.00

M 5

 0.8

4.00

4.00

35.00

50.00

M 6

 1

4.80

4.80

35.00

50.00

M 7

 1

5.80

5.80

35.00

50.00

M 8

 1.25

6.50

6.50

35.00

50.00

M 10

1.50

8.00

8.00

35.00

50.00

M 12

1.75

10.00

10.00

35.00

50.00

M 14

 2.0

 12.00

11.70

35.00

50.00

M 16

 2.0

14.00

13.70

35.00

50.00

M 18

 2.5

 16.00

15.20

35.00

50.00

M 20

 2.5

18.00

17.20

35.00

50.00

M 22

 2.5

20.00

19.20

35.00

50.00

M 24

3.00

22.00

20.60

35.00

50.00



4.     Application: The tool is used as thread electrodes on sinker EDM machines.

5.     Optional sizes (Tooth L:40mm*Total L65mm/ Tooth L:50mm*Total L75mm/ Tooth L:60mm*Total L80mm) are available here
