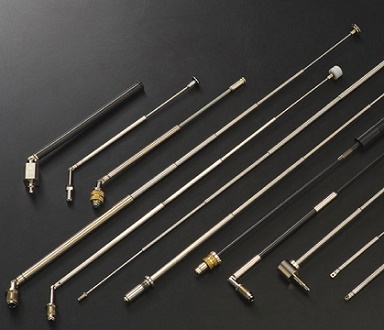

Customized High Precision Stainless Steel Tubes

The customized Higher precision stainless steel Tubes are offered in Tech EDM Trade Co., Ltd

wire EDM, drilling EDM, sinker EDM, ECM, EDS, CNC milling &engraving machines, drilling tools, milling tools

Detailed description

Material	Standard			Nominal chemical	Density
	JIS	ASTM	EN	composition %
Austenitic stainless steels	SUS304	S30400	AISI 304	Fe:72	7.9
				Ni:8.5-10
				Cr:17-21
				C＜0.07
Austenitic stainless steels	SUS316L	S31603	AISI316L	Fe:68	7.9
				Ni:11-14
				Cr:16.5-18.5
				Mo:2.5-3
				C＜0.03
Production Range
Straightening tube		Range		Tolerance
Outside Diameter		0.3-2.0mm		±0.01mm(standard)
		2.01-5.0mm		±0.02mm(standard)
Wall thickness		0.07-0.4mm		±0.01mm
Fixed length		4-150mm		±0.01mm
		150-1000mm		±0.5mm
		1000-2500mm		±2.0mm
Coiled tube		Range		Tolerance
Outside Diameter		0.3-2.0mm		±0.01mm(standard)
		2.01-5.0mm		±0.05mm(standard)
Wall thickness		0.07-0.4mm		±0.01mm
Coil Diameter		450,650 mm		Special case can be changed after discussion
